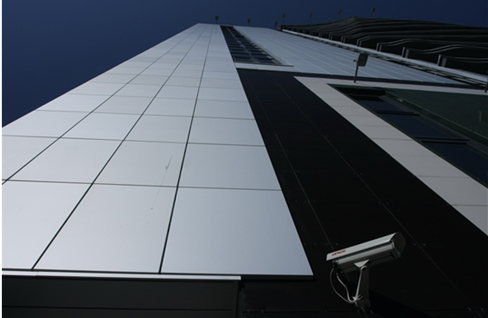

Cases from composite panels and aluminum

A new way of fixing cases made from composite panels and aluminum makes it possible to abandon additional tools and cassette-drilling operations. At the same time the fixation remains as reliable and easy to realize as it used to be. The new means of fixation can be realized using new AYPC.150.0716 sliding frame.

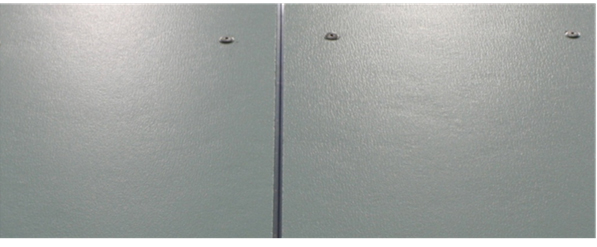

Fixing made of fiber-cement plates

The fiber-cement plates fixation technique requires special solutions. In ALT150 system this solution is realized through the introduction of two new guiding rails. Wide T-guide AYPC.150.0103 to be used as primary at the plates joint, and narrow L-guide AYPC.150.0104 for intermediate fixation.

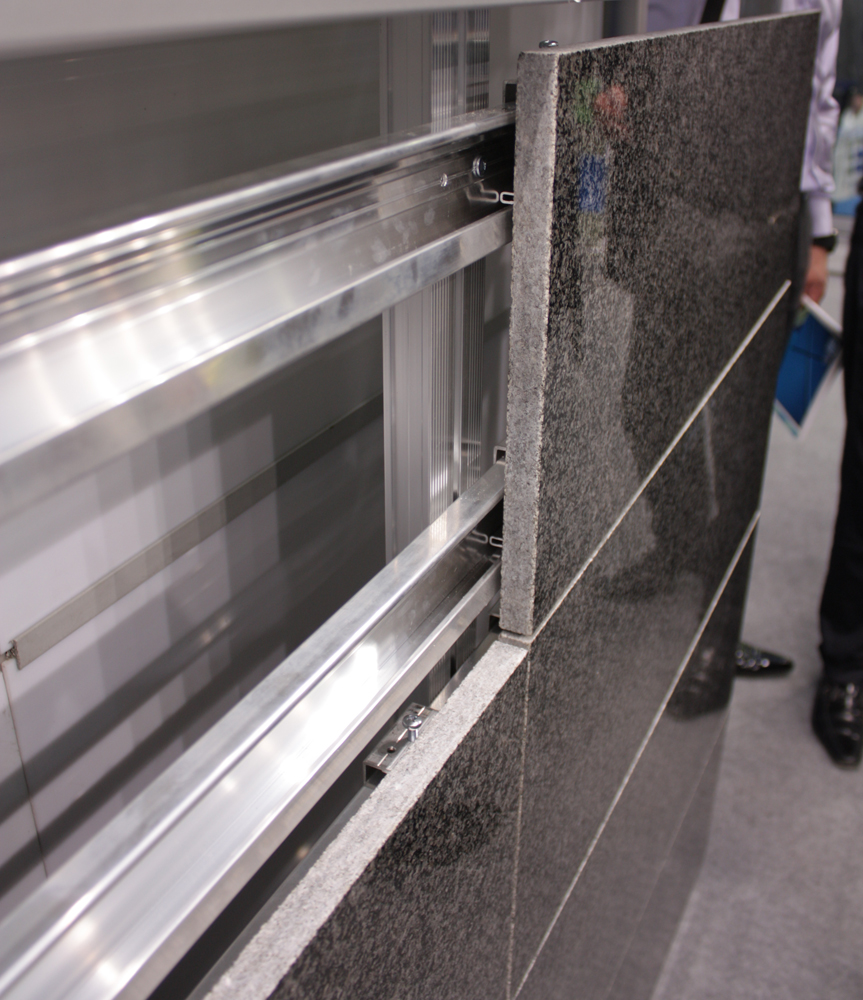

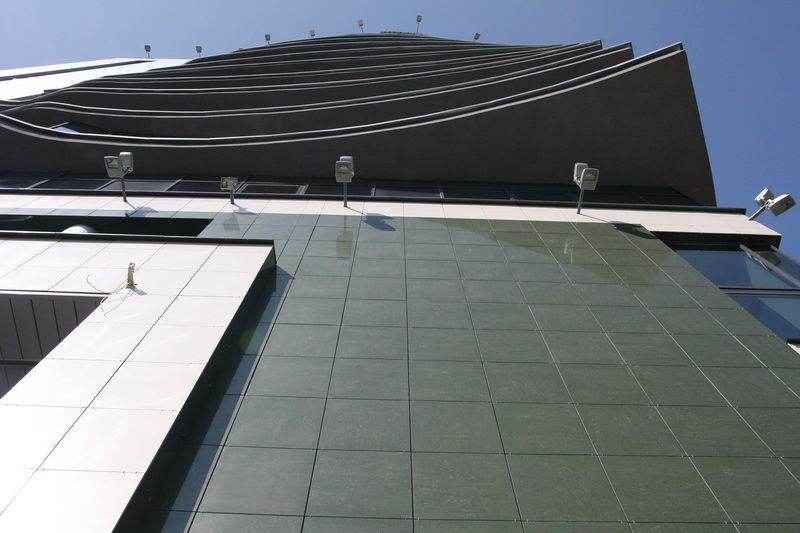

Hidden fixing of ceramic granite

Hidden fixing of ceramic granite has been realized in the system as an independent series of profiles and components, which does not interfere with the main system. This series can be used with an economical or enforced purpose guiding rails. The hidden fixing is performed with special anchors, agraffes, and a system of horizontal guiding rails AYPC.150.0105. The horizontal guide profile has a chamber (closed) section, thus it features a higher rigidity as compared to its equivalents. Due to high rigidity the guiding rail step can be 1.2 m.

In the same way one can carry out the hidden fixing of natural stone.

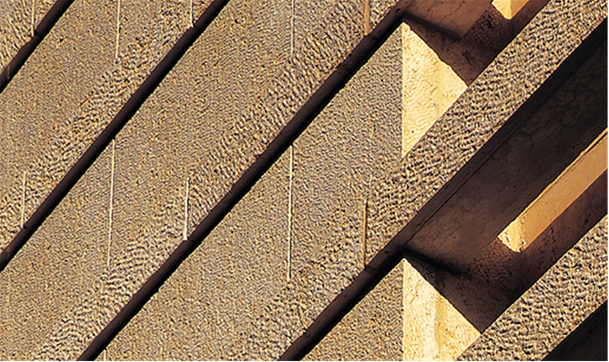

Hidden fixing of natural stone

AYPC.150.0106 horizontal guiding rail system allows performing hidden fixing of natural stone in a different, more efficient way. Natural stone can be 20 mm thick.
